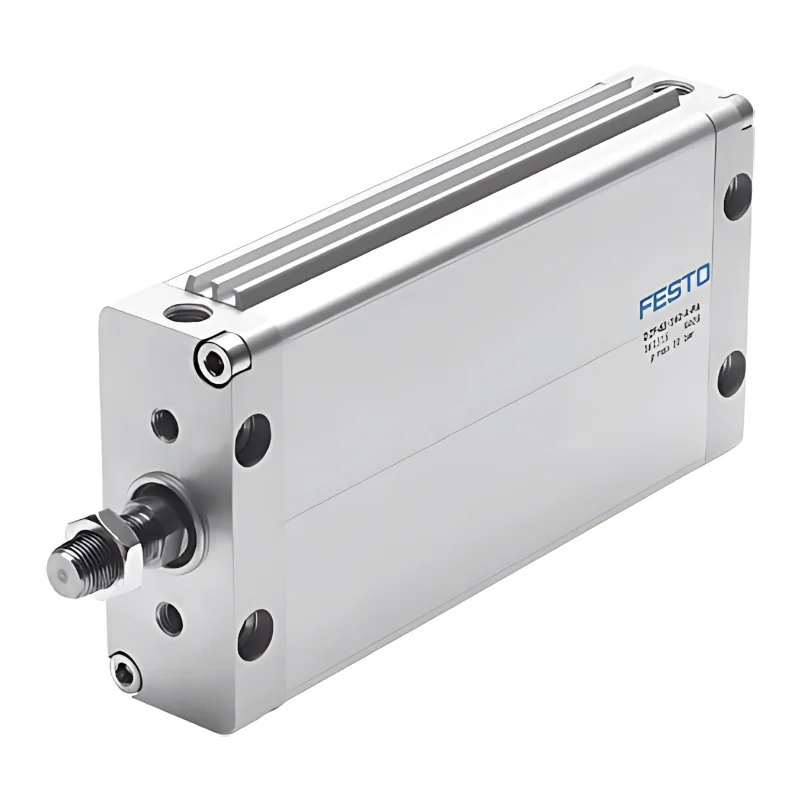

Flat cylinder
Technical data
- Manufacturer: Festo Vertrieb GmbH & Co. KG, Festo Campus 1, 73734 Esslingen, Germany
- Type: Flat cylinder
- Piston diameter: 25 mm – equivalent diameter
- Stroke: 125 mm
- Piston rod: external thread M10x1.25
- Anti-rotation lock/guide: Oval piston
- Operating mode actuator: piston rod on one side
- Installation position: any
- Cushioning: elastic cushioning rings/plates on both sides
- End position range: no damping
- Position detection: for proximity switches
- Operating pressure: 1 – 10 bar
- Mode of operation: double-acting
- Pneumatic connection: M5
Product data sheet
